Fiche | Parts Diagrams

Select a Section

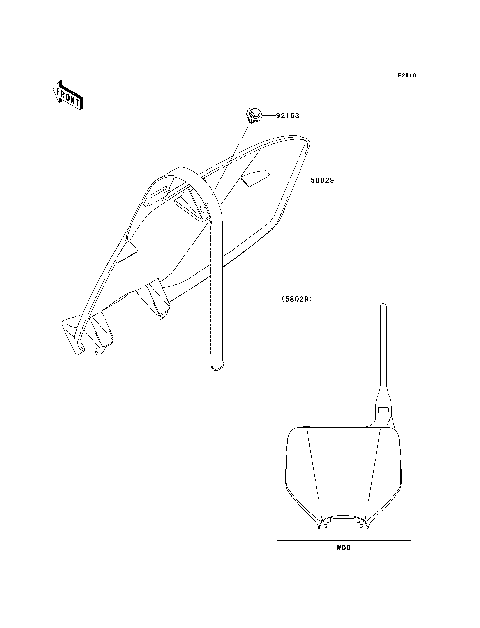

Accessory

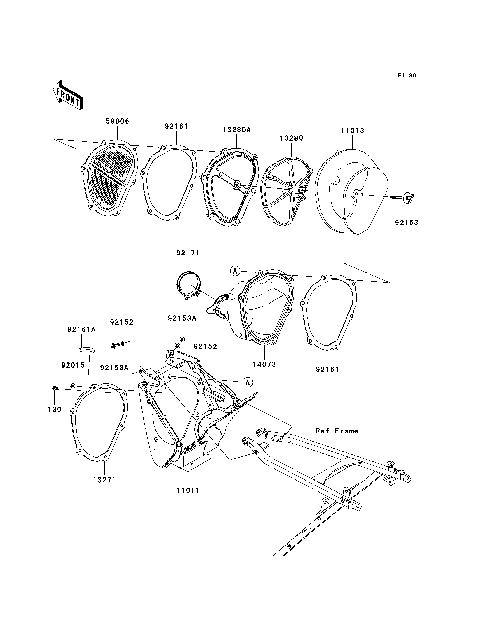

Air Cleaner

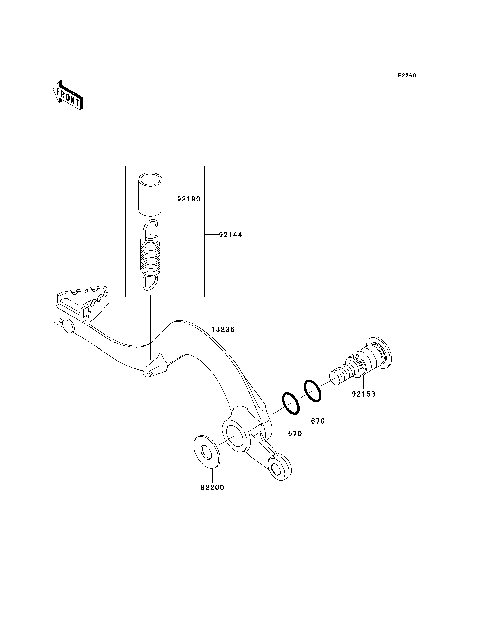

Brake Pedal

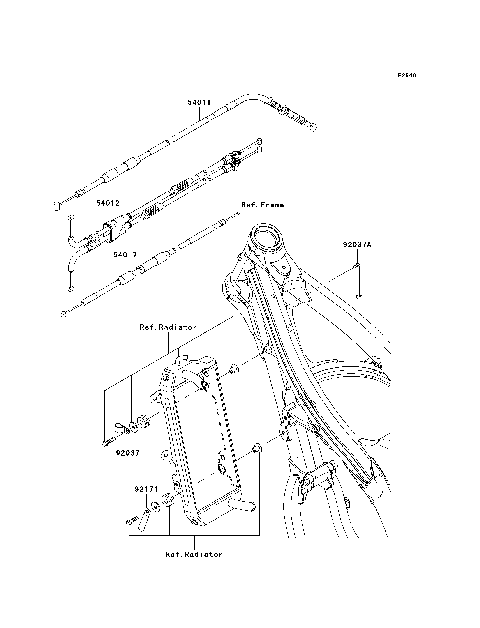

Cables

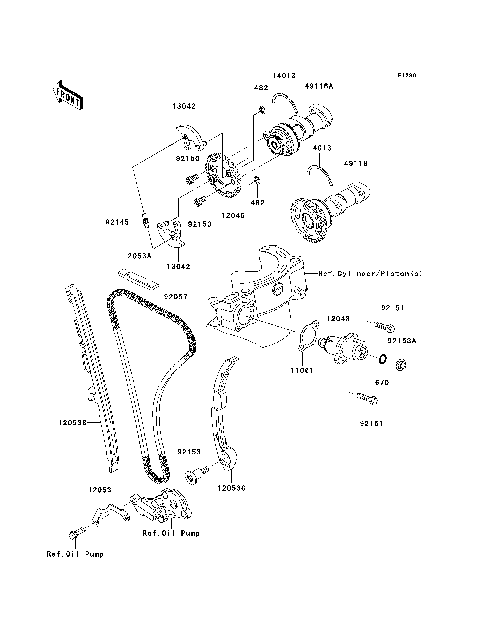

Camshaft(s)/Tensioner

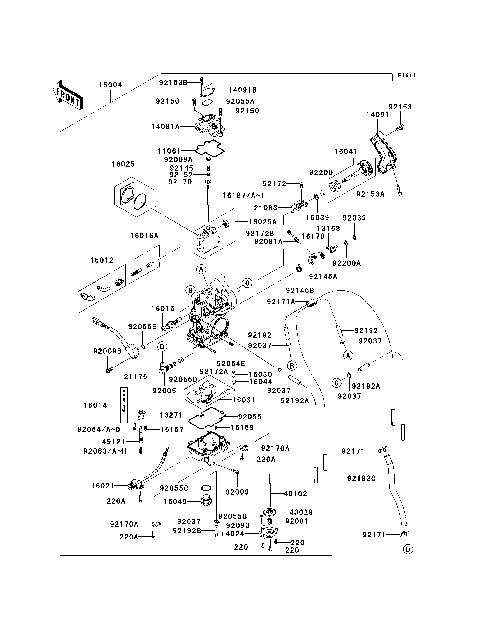

Carburetor

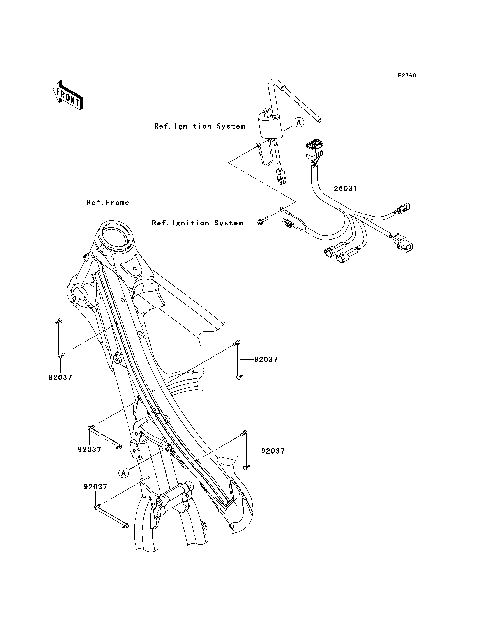

Chassis Electrical Equipment

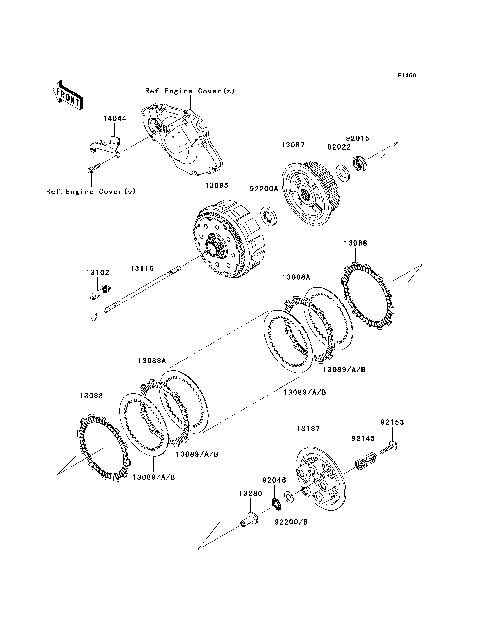

Clutch

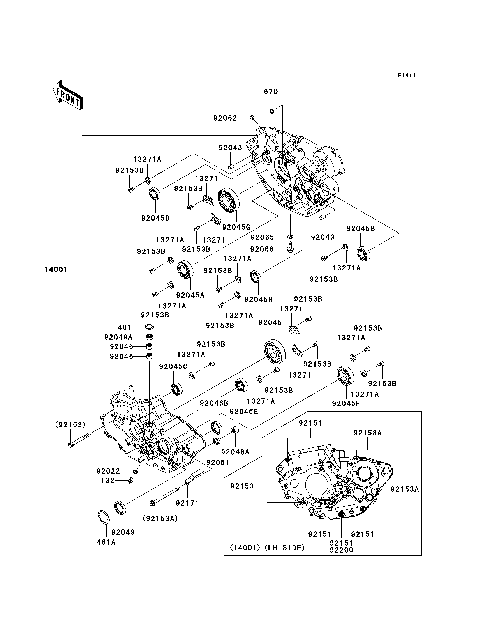

Crankcase

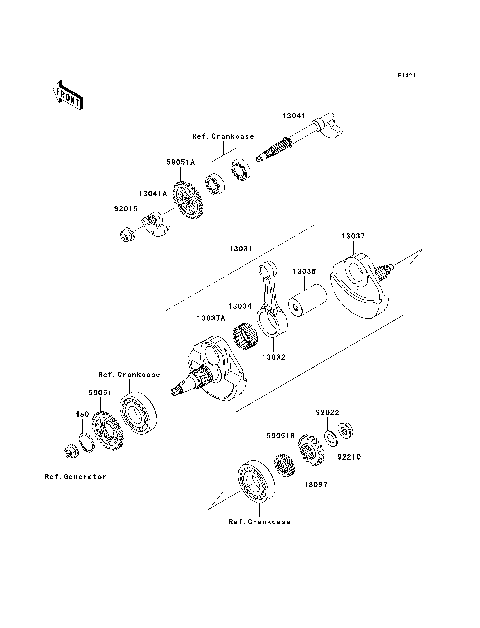

Crankshaft

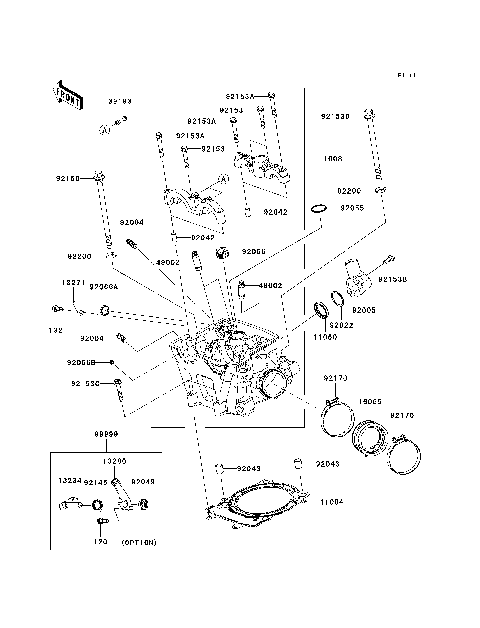

Cylinder Head

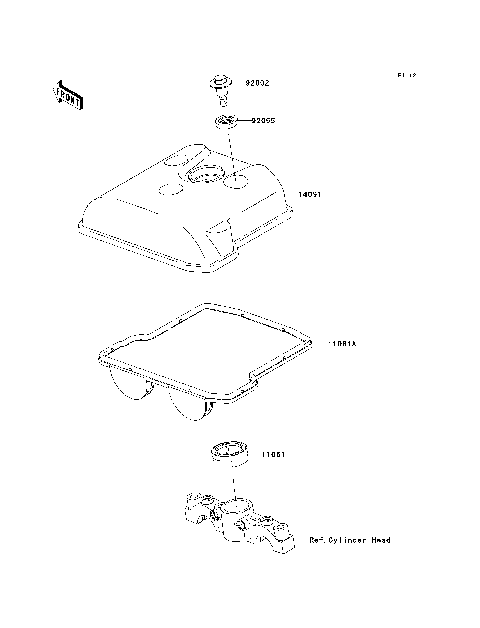

Cylinder Head Cover

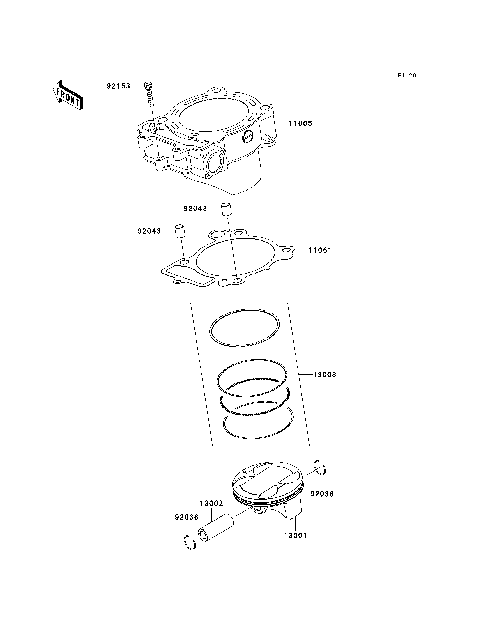

Cylinder/Piston(s)

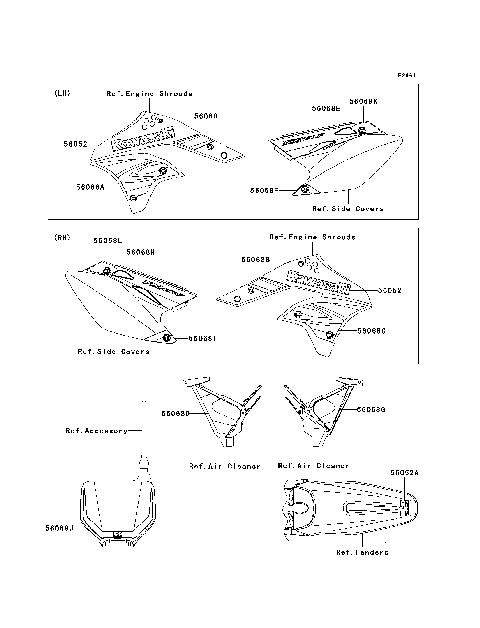

Decals

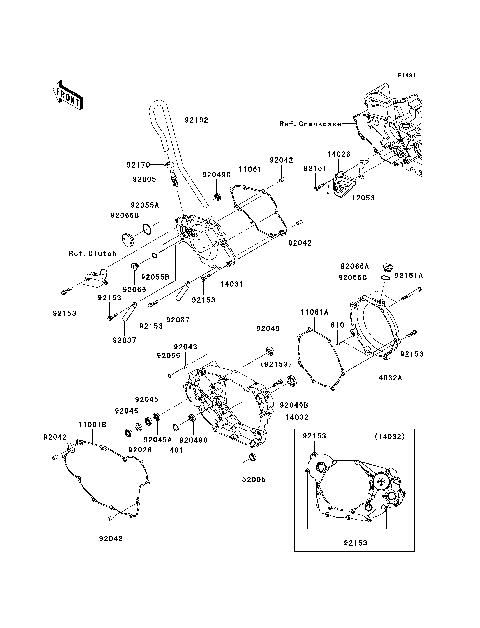

Engine Cover(s)

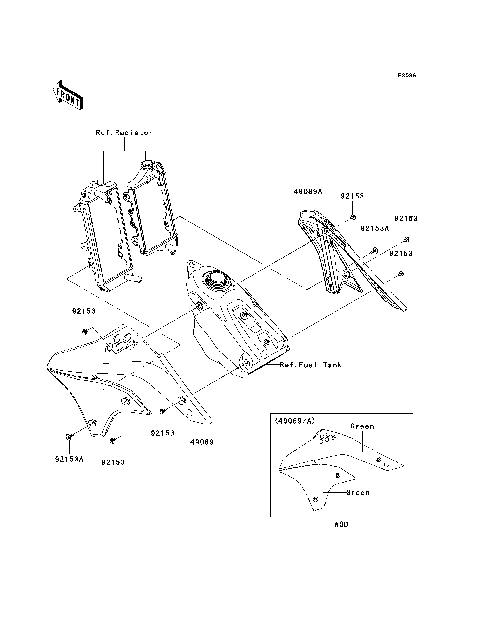

Engine Shrouds

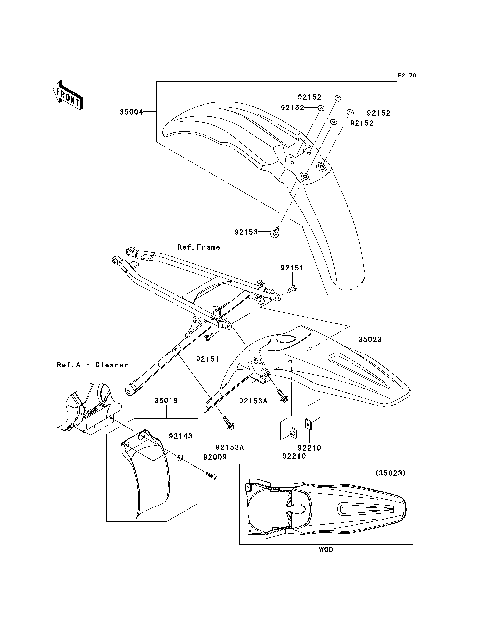

Fenders

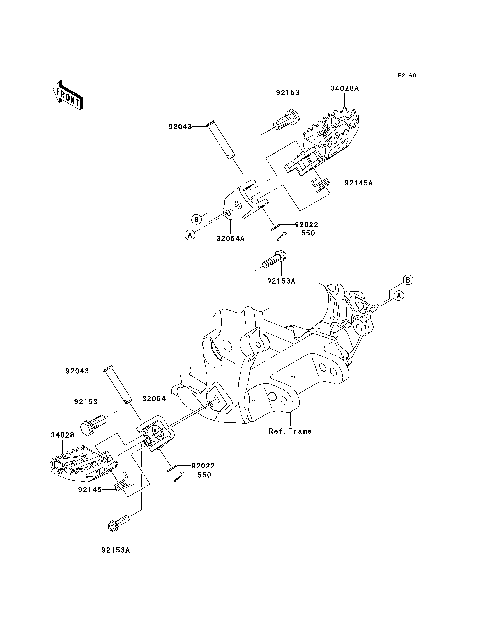

Footrests

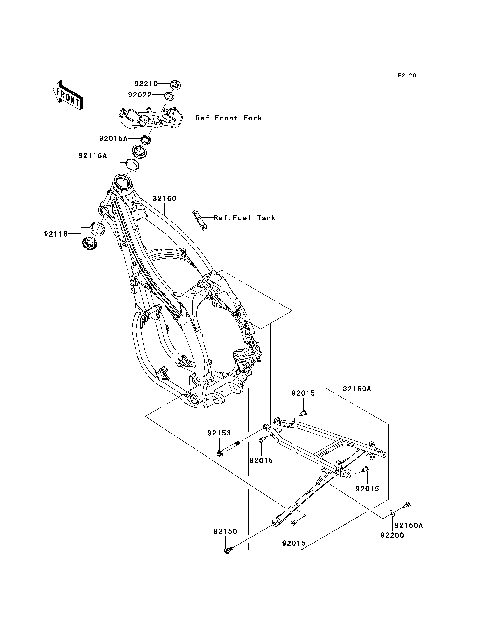

Frame

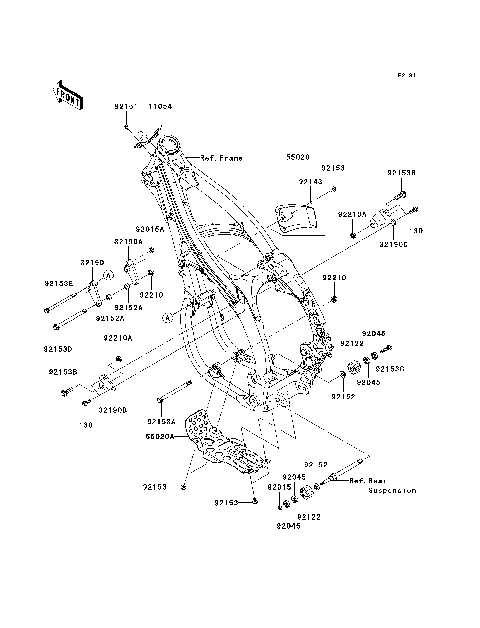

Frame Fittings

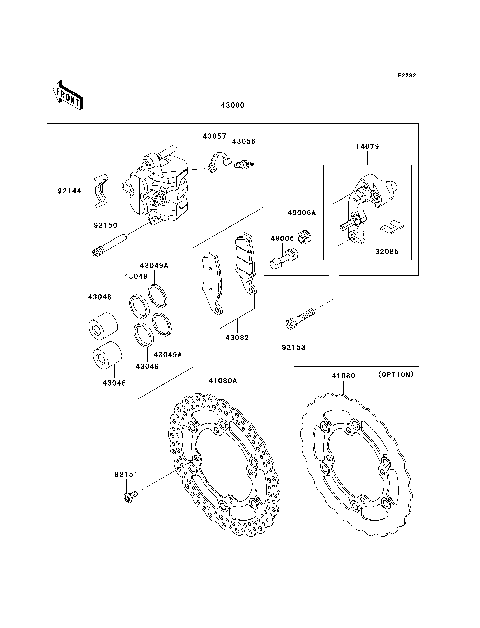

Front Brake

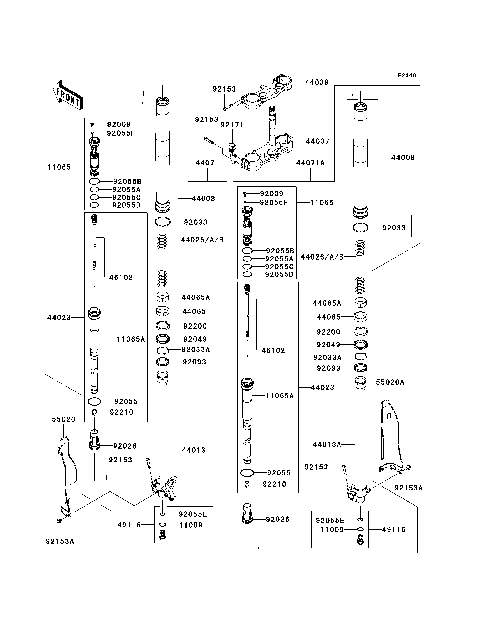

Front Fork

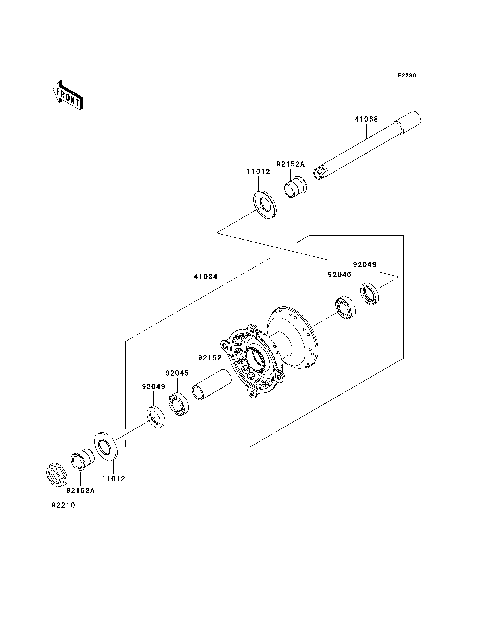

Front Hub

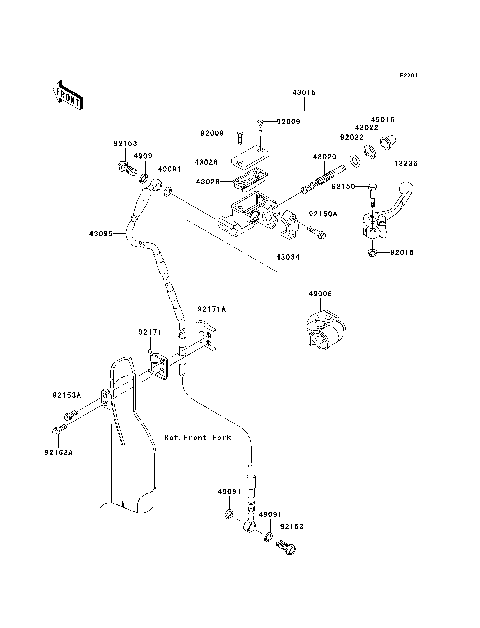

Front Master Cylinder

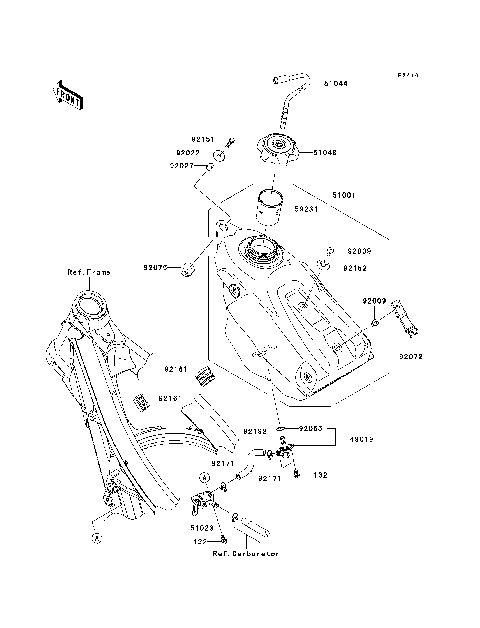

Fuel Tank

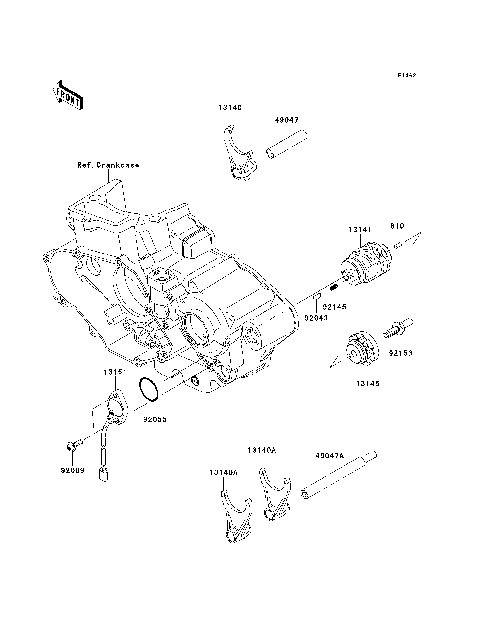

Gear Change Drum/Shift Fork(s)

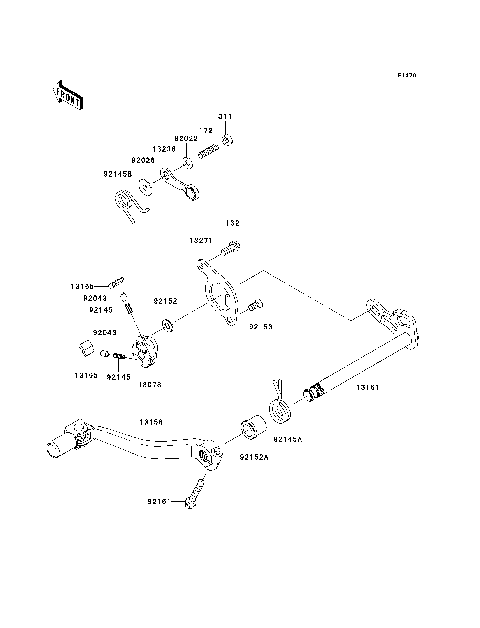

Gear Change Mechanism

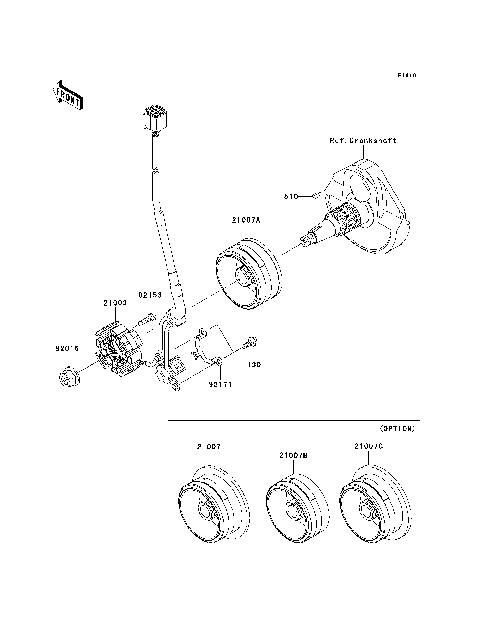

Generator

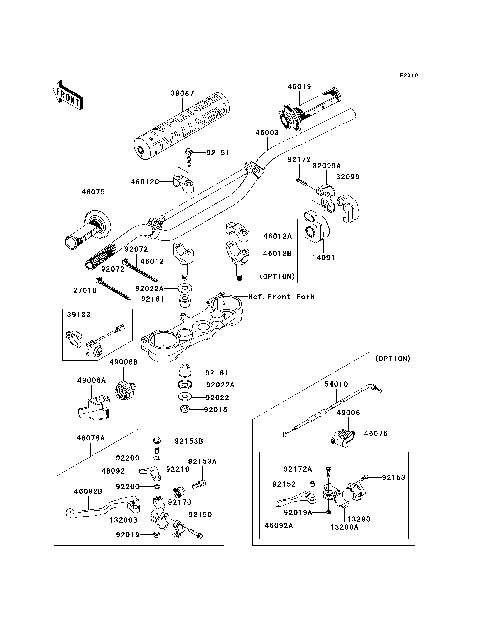

Handlebar

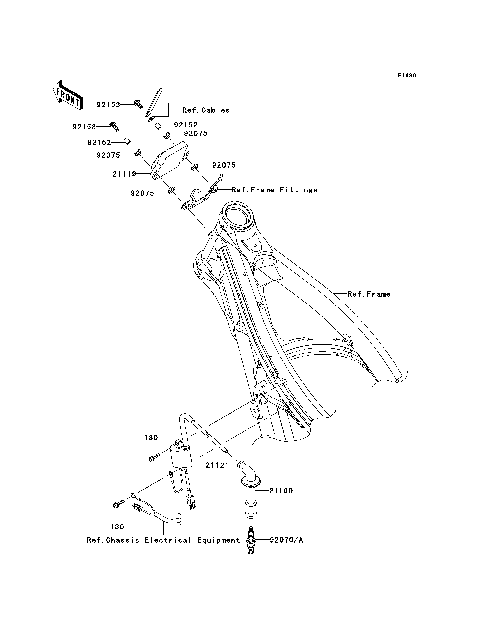

Ignition System

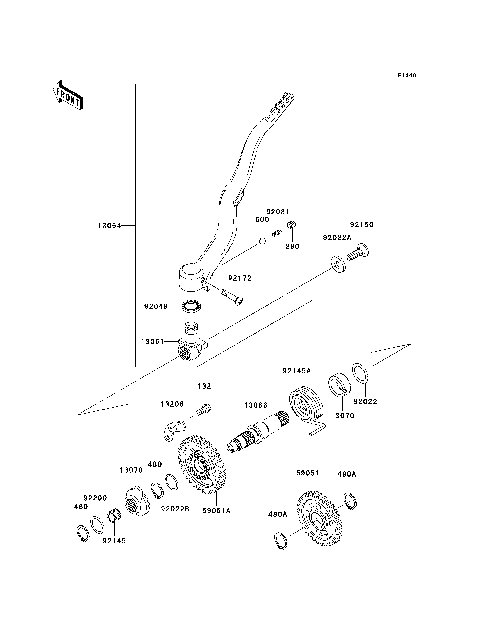

Kickstarter Mechanism

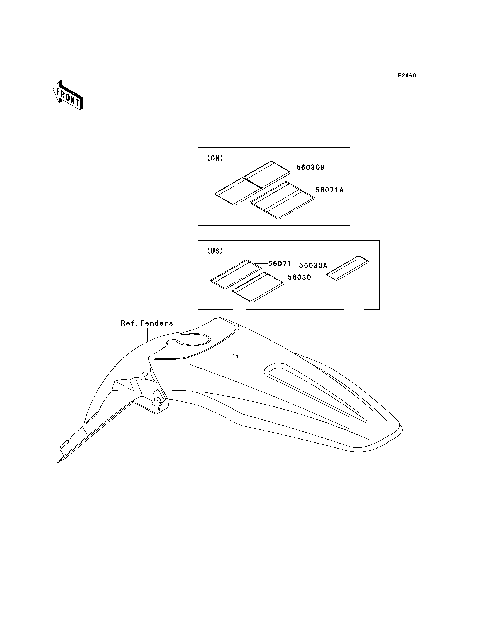

Labels

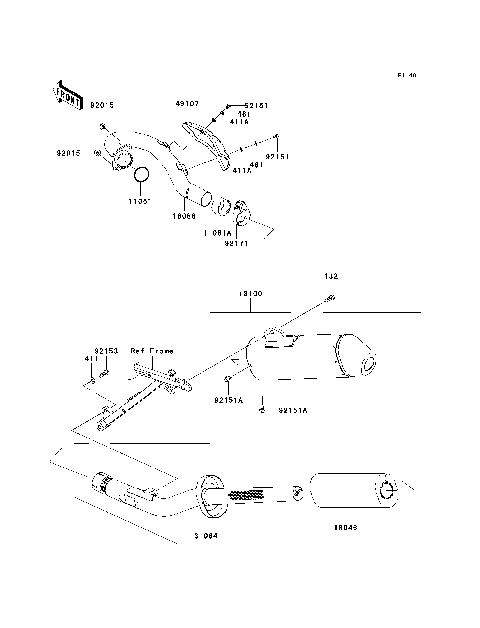

Muffler(s)

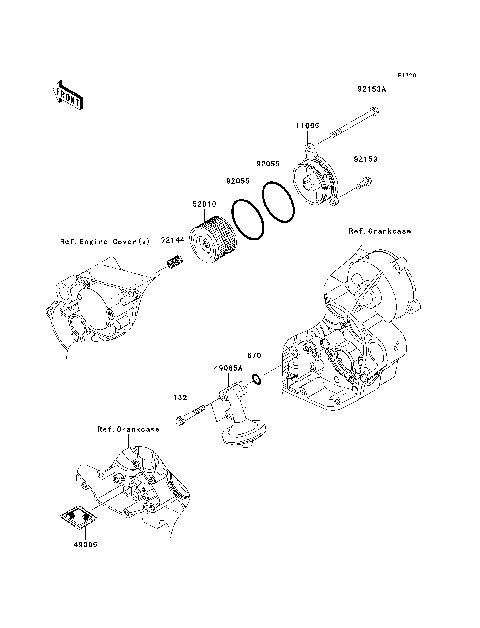

Oil Filter

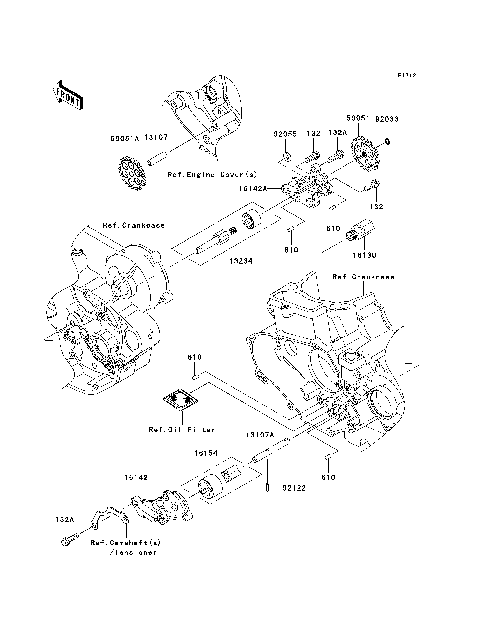

Oil Pump

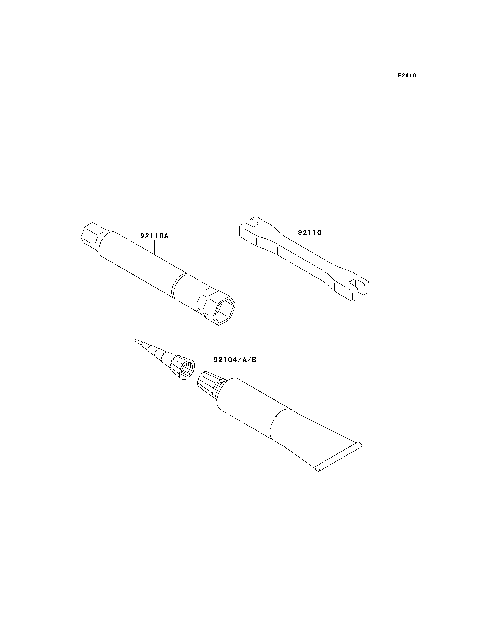

Owner's Tools

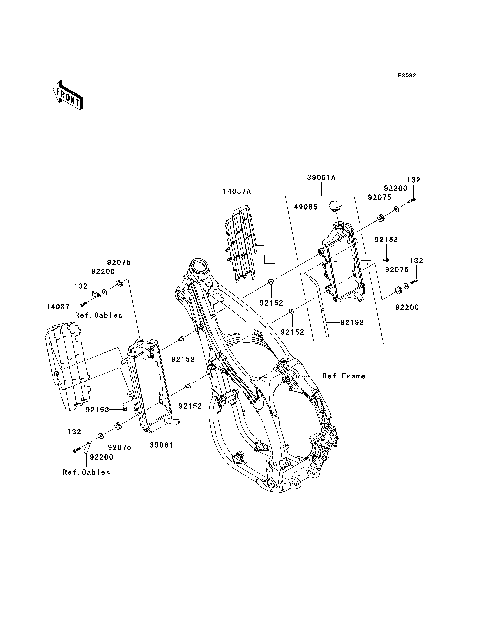

Radiator

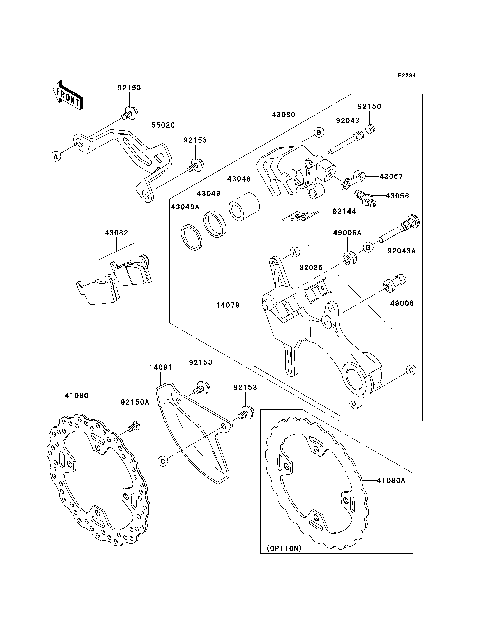

Rear Brake

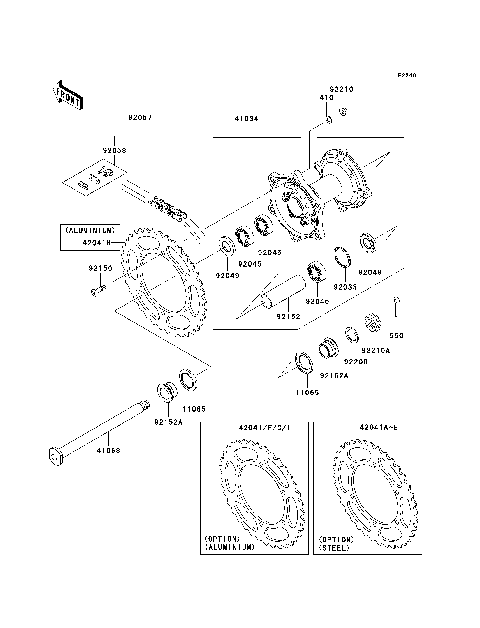

Rear Hub

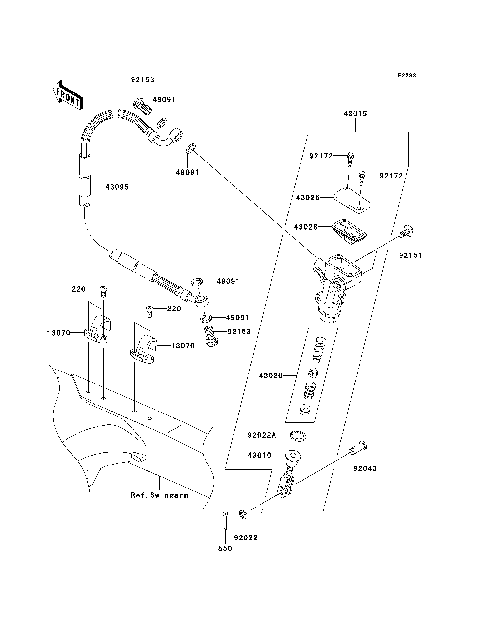

Rear Master Cylinder

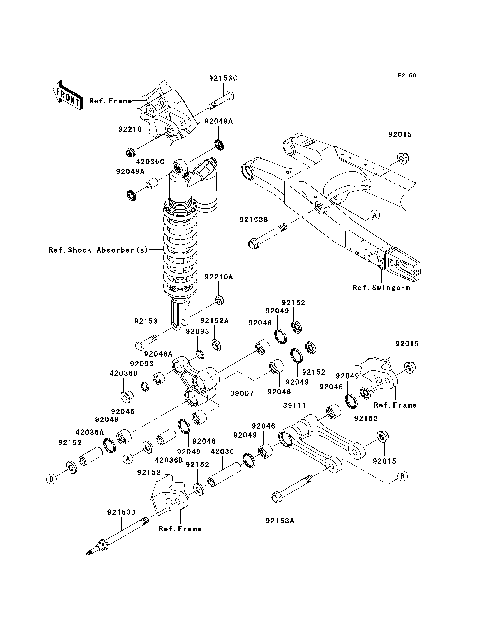

Rear Suspension

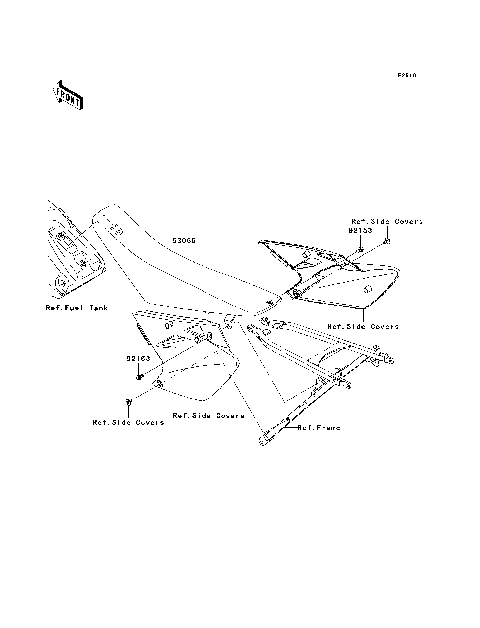

Seat

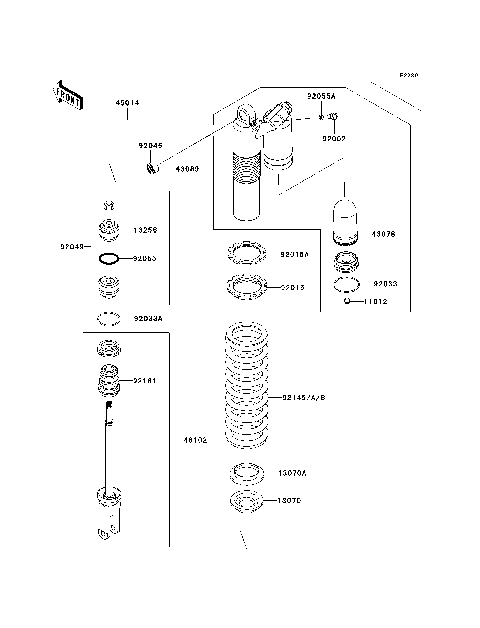

Shock Absorber(s)

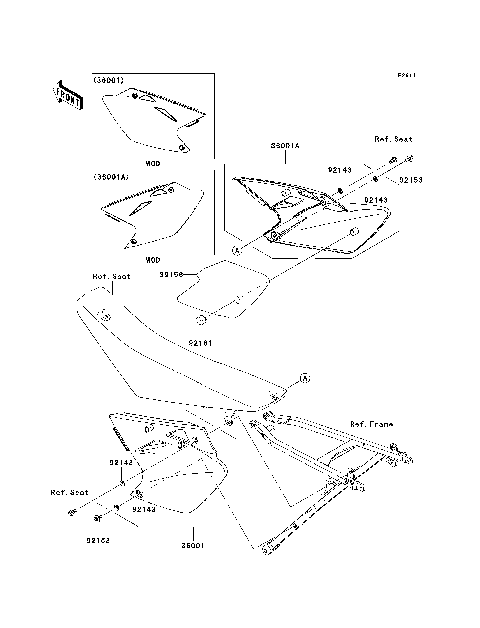

Side Covers

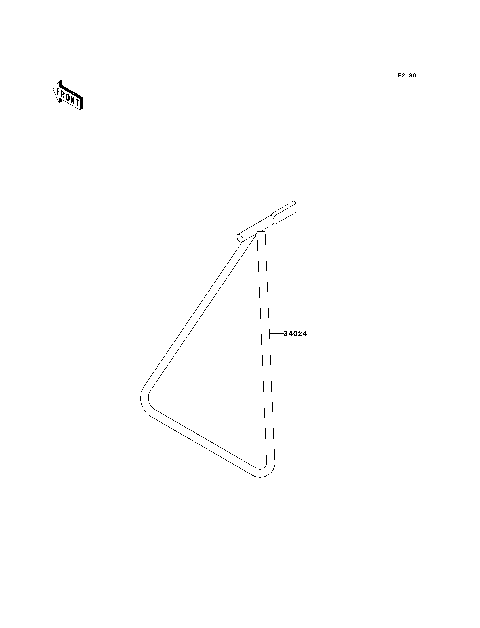

Stand(s)

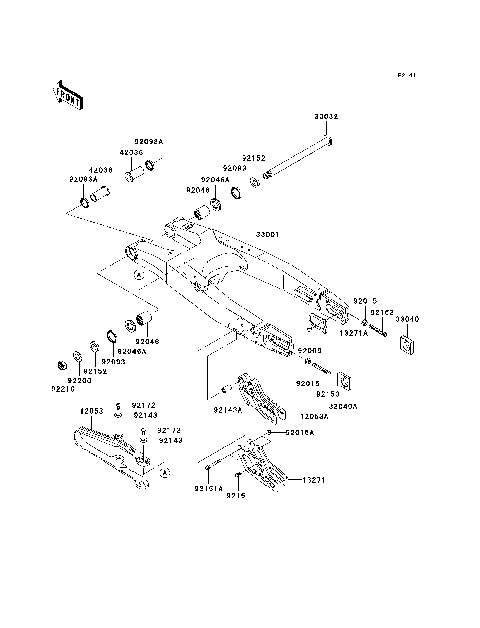

Swingarm

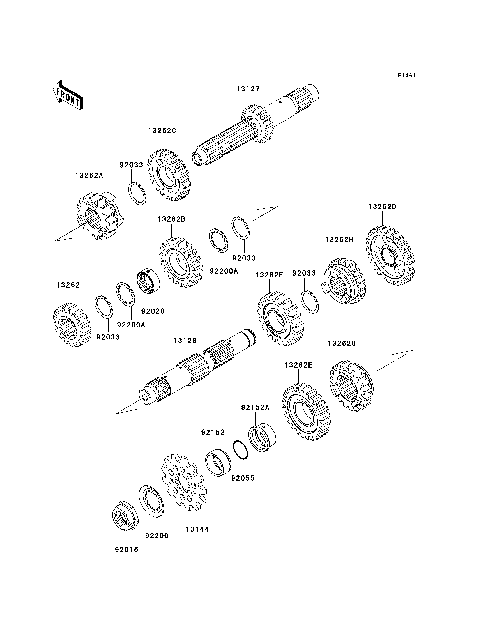

Transmission

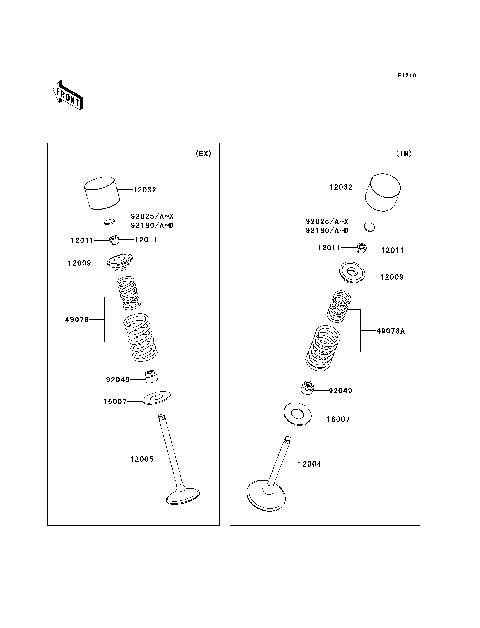

Valve(s)

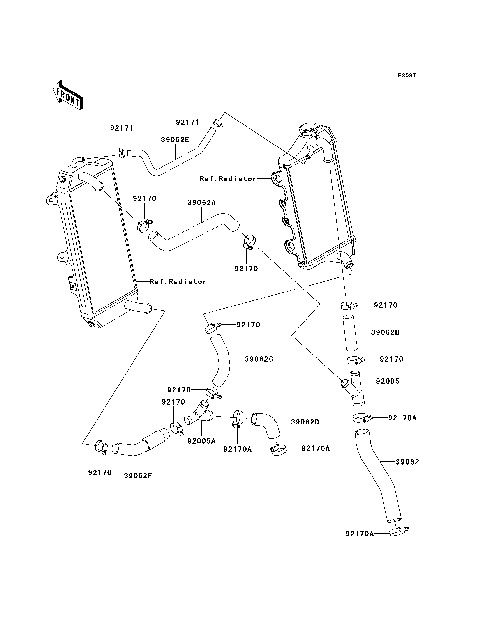

Water Pipe

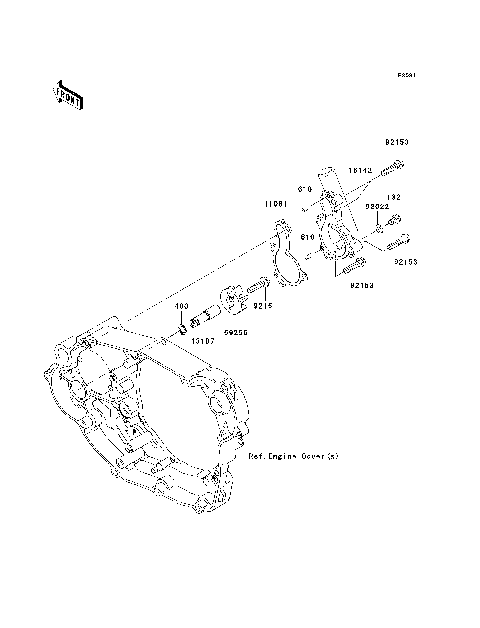

Water Pump

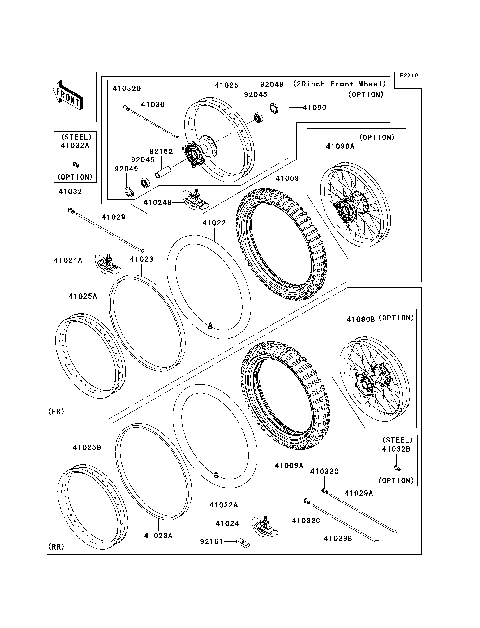

Wheels/Tires
